CRTM-SGrease-1430 silicone insulating thermal grease is formulated with silicone oil as the base polymer, filled with multiple high-performance ceramic composite powders.
The product features low viscosity, enabling tight contact between the surfaces of electronic components to be cooled and heat sinks, which reduces thermal resistance. It rapidly and effectively lowers the temperature of electronic components, extending their service life and improving operational reliability.
In addition to electrical insulation and low thermal resistance, the material generates no mechanical stress during application and forms an ultra-thin interfacial layer. It maintains high stability within the temperature range of -60°C to 200°C, with outstanding weather resistance and radiation resistance.

Sample application Quotation application

title

language

download

Properties and Applications

Properties:
Electrical insulation & low thermal resistance
Low oil separation rate
Excellent interfacial wettability
Stable chemical and mechanical properties

Applications:
Power modules
Small office network equipment
LED assembly
Automotive electronic products

Usage Instructions：
Ensure all surfaces to be in contact with thermal grease are clean and dry.
Apply a thin, uniform layer of thermal grease to the flat surface of electronic components or heat sinks.
Press the electronic component firmly against the heat sink to form an ultra-thin grease interface between the two flat surfaces.
Secure the heat sink completely.

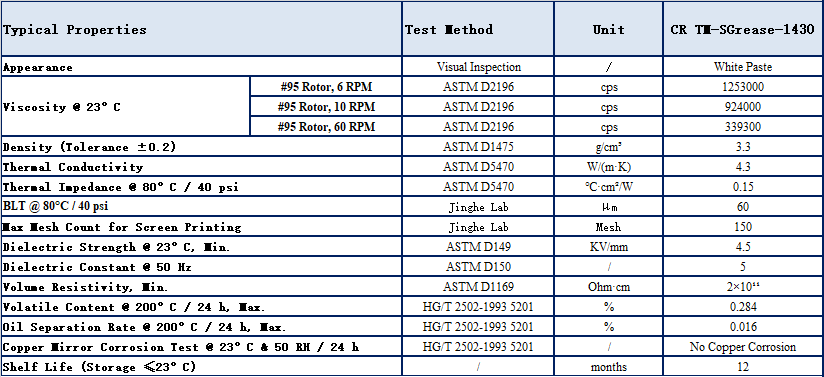

Typical performance

View typical performance
